| Product Attributes |
|
| Type |
Description |
| Category |
Connectors, Interconnects |
| Modular/Ethernet Connectors |

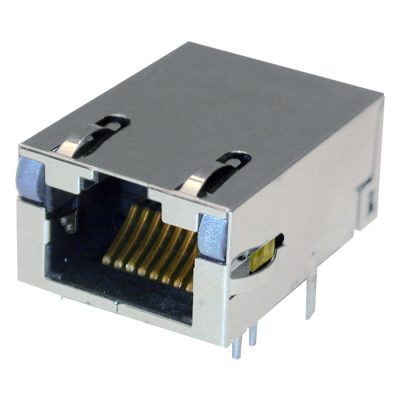

| Modular/Ethernet Connector (RJ45) Jacks With Magnetics |
| Manufacturer |
Bel Fuse Inc. |
| Series |
MagJack® |
| Packaging |
Tray |
| Part Status |
Active |
| Connector Type |
RJ45 |
| Number of Ports |
1 |
| Number of Rows |
1 |
| Applications |
10/100/1000 Base-T, AutoMDIX |
| Mounting Type |
Through Hole |
| Orientation |
90° Angle (Right) |
| Termination |
Solder |
| Height Above Board |
0.440″ (11.18mm) |
| LED Color |
Green, Orange, Yellow – Yellow |
| Number of Cores per Jack |
8 |
| Shielding |
Shielded, EMI Finger |
| Features |
Board Guide |
| Tab Direction |
Up |
| Contact Material |
Copper Alloy |
| Contact Finish |
Gold |
| Operating Temperature |
0°C ~ 70°C |
| Contact Finish Thickness |
30.0µin (0.76µm) |
| Shield Material |
Copper Alloy |
| Housing Material |
Polyamide (PA), Nylon |
